Kanto PDX650 Full Motion TV Wall Mount for 37-inch to 75-inch TVs

The PDX650 from Kanto is a full motion TV wall mount that allows your flat screen TV to sit 2" from the wall. Its generous tilt and swivel capabilities are complemented by 21.8" of extension, making it easy to place your TV in the most optimal position. Exceptionally strong yet lightweight enough to make installation a breeze, this TV wall mount will ensure your TV remains safe and secure. Available in black and white finishes.

• TV Sizes: 37" to 75"

• Weight Allowance: 125 lbs (57 kg)

• VESA Sizes: 100x100 to 600x400

• Wall Plate: 22" (56 cm); Accommodates dual studs with up to 16" spacing
• Tilt: +15° to -3°
• Swivel: 80° in either direction, dependent on TV size
• Extension: 21.8" (55.3 cm) from the wall
• Profile: Sits 2" (5 cm) from the wall
• Shipping box weight: 24.7 lb (11.2 kg)
• Shipping box dimensions: 29.4" x 15" x 2.8"
• Product weight: 22.5 lb (10.2 kg)

• Fits most flat panel TVs from 37" to 75"
• Supports TVs up to 125 lbs (57 kg)
• Accommodates VESA sizes from 200x100 to 600x400
• Accessible tilt mechanism provides a +15° to -3° tilt angle
• 80° of swivel in either direction, dependent on screen size.
• Sits 2" (5 cm) from the wall
• Extends up to 21.8" (55.3 cm) from the wall
• Integrated cable management system
• Adjustable horizontal leveling
• 22" (56 cm) dual stud wall plate accommodates up to 16" stud spacing
• Solid steel construction with durable powder coated finish
• Installation manual and all mounting hardware
• for wood stud and concrete installation is included
• cULus Certified

With a unique tilt head designed to nestle into the frame, the PDX650 TV wall mount will let you push your flat screen TV within 2" of the wall. The H frame assembly provides maximum access for cable connections.

With its adjustable bracket arms, the PDX650 accommodates VESA sizes from 100x100 to 600x400.

Even with its low-profile design the PDX650 can extend almost 22" from the wall, giving you plenty of room for tilting and swiveling your TV, or for reaching out from alcoves.

With its solid steel construction, this durable TV wall mount is designed and tested to hold up to 125 pounds. Even at maximum weight and full extension, your TV will remain in place with no sag.

The articulating arms allow you to pivot your TV up to 80° in either direction, depending on your TV size, allowing you to achieve the perfect viewing angle.

The accessible tilt mechanism makes it easy to angle your TV up to 15° forward or 3° backward. Once you’ve found the best viewing angle, tighten the nuts to secure your TV in place.

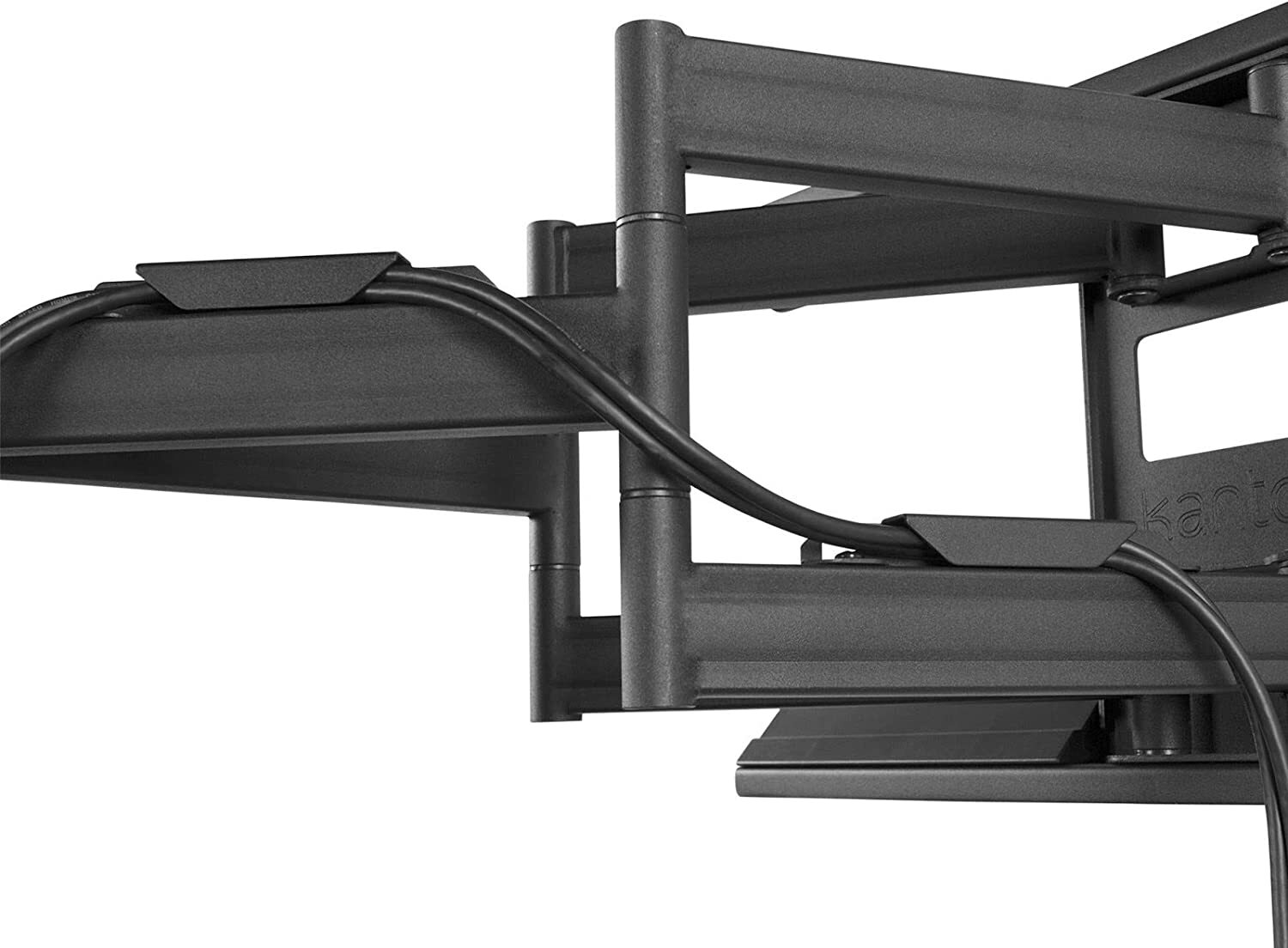

Four cable management raceways are attached to the bottom of the wishbone arms. These are easily accessed by loosening a screw, twisting them to the side, laying in the cable, and re-inserting the screw. Route multiple cables down one side, or power and HDMI down opposite sides – whatever works best.

We supply you with everything except a toolbox to ensure that your installation goes smoothly. Instruction manuals are provided in English, French, and Spanish, as well as the parts you need to mount your TV safely and securely. Easy-to-follow online videos and phone support are available to assist you along the way.

The PDX650 includes a labeled bolt pack with a variety of bolt diameters and lengths, as well as several spacers to allow a custom fit. Lag bolts and concrete anchors are provided so you can mount to wood studs and concrete walls.
